Interchangeable Plug Power Adapter 5-24V 0.5-2A Power Supply Adaptor with EU US AU UK Plugs

FOB Reference Price:Get Latest Price
US $1.8-6.6 / Pieces | 1 Piece/Pieces Interchangeable adapter (Min. Order)
Key Company Capacity
Production Capacity >
  • Employees: 101 - 200 People
  • Factory Size: 1,000-3,000 square meters
  • No. of Production Lines: Above 10
Research & Design >
  • No.of R&D Engineer: 5 - 10 People
  • Production Certification: 12
Trade Capacity >
  • Export Mode: Using an agent
  • Export Percentage: 71% - 80%
  • No. of Employees inTrade Department: 6-10 People
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OUSM - AC Adapter
Model Number:
OUSM-AAABBB - Interchangeable Adapter
Output Type:
DC
Connection:
Plug In
Product Name:
Interchangeable plug ac adapter
Input:
AC 100-240v 50-60hz
Output Voltage:
5V 9V 12V 15V 19V 24V
Output Current:
0.5A 1A 1.5A 2A
Output power:
5W - 36W
DC Cable:
1.2m 1.5m 1.8m
Effenciency:
89%
Protections:
OVP OCP OTP
Certificate:
UL CE FCC GS SAA KC C-tick EMC ROHS
Warranty:
3 Years
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day Interchangeable EU US AU UK Plugs Ac dc Power Adapter
Packaging & Delivery
Packaging Details
Labled Interchangeable Plug Power Adapter
Standard Packing: 100pcs/Carton or Meet Customer's Requirement.
Port
ShenZhen
Lead Time :
Shipped in 15 days after Prepayment
Video Description
Product Description
Welcome to Oushangmei Power Adapter Technology Co.,Ltd.OUSM offers high quality interchangeable plug power adapter items.Numerous types of exchangeable plugs ac adaptor alternatives are for sale with Wholesale Price,You can choose from 5V 9V 12V 15V 19V 24V 36V etc.
Interchangeable Plug Adapter detailed description;
Model: OUSM-AAABBB,AAA stands for voltage,BBB stands for current;(Eg INOUSM-120100 means a interchangeable plug power adapter and the output 12v 1a 12w)
Power adapter Specification :
Over voltage protection : Yes. Auto-recovery.
Over current protection : Yes. Auto-recovery.
Short Protection : Auto Recovery
Load regulation : ±5% variations from minimum to maximum output voltage or current.
Operating temperature : 0°C ~ + 40°C.
Storage temperature : -40°C to + 85°C.
Operating Relative Humidity : 5% to 95% non - condensing.
Withstand Voltage : 110v-240v 50Hz.
EMI Requirements : CE : Emission:EN55022; EN61000-3-2,3/ Immunity; IEC61000-4-2,3,4,5,6,11 FCC 47 CFR .
Safety standards : (A)UL60950-1 CSA C22.2 (B)EN60950-1; IEC60950-1.
(5W - 36W Series) 5V 9V 12V 15V 19V 24V 0.5A 1A 1.5A 2A interchangeable plug ac dc power adapter
Power Supply 5V 9V 12V 15V 19V 24V 0.5A 1A 1.5A 2A with Interchangeable Plug ac dc power adapter (US. EU, UK, AU, KR plugs)
 Features
A.100v-240v Wide Input Ac Voltage
B.High Effciency of the machine,up to
the level 6
C.Natural air cooling,the shell
surface temperature less than 60 ℃
D.The insulation resistance of safety
not less than 10 MΩ
E.Protection function for internal of
over current, over voltage and short circuit
F.Only 1% of output voltage the ripple
G.Ics control the circuit, and
components of smaller discreteness
H.100% full load burn-in testing
SPECIFICATION
INPUTSETUP RISE TIME80ms/240VAC
HOLD UP TIME(Typ.)60ms/240VAC
VOLTAGE RANGE100-240VAC
FREQUENCY RANGE50-60Hz
EFFICIENCY(Typ.)89%
AC CURRENT(Typ.)1.0A
INRUSH CURRENT(Typ.)20A/230V(COLD START20A/230VAC)
PROTECTIONShort circuitProtection type: Recovers automatically after faultcondition istemoved
OverloadOverload protectecd@115-140% abovepeak rating
Protection modeHiccup mode,Auto-recovery
ENVIRONMENTWORKING TEMP0 - 50 ℃
WORKING HUMIDITY20 - 90%RH non-condensing (waterproof)
STORAGE TEMP.HUMIDITY(-20 ℃) - ( +85 ℃),l0-95%RH
SAFETY&EMCSAFETY STANDARDSCE/UL/CUL/GS/FCC/ROHS/PSE/CCC ETC
WITHSTAND VOLTAGE3KVAC
EMCCFR47 PART15 SubrtB UL60950-1 J60950-1 J55022(H22)
RemarksA.When not especial specified,all the parameters are obtained under the
conditions of input voltage is 230vac,nominal rated load and 25 ℃.
B.Ripple and noise voltage is obtained that in the 20MHz bandwidth
oscilloscope's 12 inch twisted pair terminal add capacitance 0.1u and 47u capacitance.
C.Toterance is the sum total of the voltage setting error,
Voltage regulation factor and current adjust rate.
Market: United states,Korea,European countries,Australia,China,England plugs power adapter(interchangeable/removeable/exchangeable/Detachable plug ac dc power adapter)
Wall Mount Type ac adaptor
All these Interchangeable Power Adapter Meet UL, CE, GS, SAA, FCC, EMC.
No Load Power Usage Lower than 0.1W

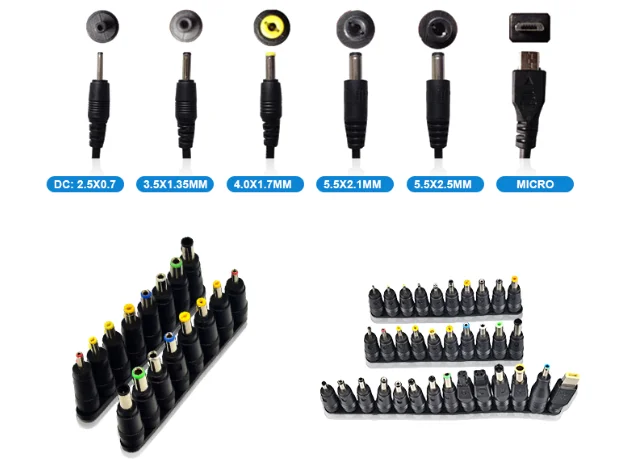

Interchangeable plug Power Adapter & DC Connectors:



Application of the interchangeable plug ac dc power adapter;

Scope: Table lamp, Electronics, LED products, CCTV, communication devices, Radio, Motor-driven Appliance, Heater, Water Pump, Toy, Security Protection, coffee Equipment, etc.




A Quick Summary of Ac dc power adapter;
The Ac dc power adapter is a kind of external power source, generally enclosed in a case just like an AC plug. Adapters for battery-powered devices might be referred to as battery chargers,rechargers or wall chargers.AC adapters are employed along with electric gadgets that need power but don't have inner components to gain the necessary voltage and power from mains energy.
Every AC/DC power adapter is created to take a specific AC input (most of the common output from a 120 V AC outlet in your house) and transform it to a certain DC output. Similarly, every gadget is created to take a specific DC input. The key is to fit the DC output of the power adapter to the DC input of the gadget. Identifying the outputs and inputs of the adapters and devices would be the challenging component.

The second crucial term to understand is polarity. For direct currents, you can find a positive pole (+) and a negative pole (-). To have an power adapter to work,

The positive plug should mate with a negative receptacle or vice versa. Direct current, naturally, is really a one-way road, and stuff just won’t work by trying to go up the downspout.
Complete Self-help guide to Utilizing the Proper Wall charger or Interchangeable Plug AC DC Power Adapter;


The following may cause harm to the gadget:
Reverse polarity
Higher current adaptor than device rating
The following may cause damage to the power cord or power adapter:
Reverse polarity
Lower current adapter than device rating
The following may not cause harm, however the equipment won't work correctly:
Lower voltage adapter than gadget rating
Higher current adapter than gadget rating



Company Information



Dear Customers All Over The World!Welcome to Shenzhen Oushangmei Technology Co.,Ltd!





Shenzhen Oushangmei Power Technology Co., Ltd. is known as a top Producer, Vendor and Exporter of Switching mode Power Supply & Adapter,that has a manufacturing facility in Shenzhen China. We stock and export regularly top quality Switching Power, Medical Adaptor, Power over ethernet Adapter, USB Phone charger, Waterproof ip67 power Adapter & LED Driver, Interchangeable plug power adapter.Our power adapter factory frequently enhance the producing procedures and work environment via whole worker engagement and rigid sticking with the honest enterprise values. We've received a number of clients in the field of ac dc power adapter.Our truthfulness and hard work helps us to complement our top quality along with intercontinental requirements.



Our coverage is always to reach the customers' approval both by offering them with top level Ac dc Power Adaptor and services which fulfill or go beyond their requirement. It's the drive to produce ac adapter products to match the exact require for our buyer ranging from small businesses to big producing factory.We're providing our customers the world-class selection of Ac dc Adapters.



Wall mount ac adapter with interchangeable plugs offered by OUSM.This kinds of power adapter is appling for Mobile Products,Routers, Computer Equipments & CCTV Projects.and much more at Shenzhen Oushangmei Adapter Technology Co.,Ltd. You can feel confident with our affordable price guarantee.



If you're enthusiastic about any kind of power adapter series items, don't hesitate to write us.



Certifications
Switch mode power adapter with interchangeable plugs of EU US AU UK KC etc.All products met the UL CE FCC SAA RoHS C-tick.Keep in mind that all the interchangeable adapters are wall mounted.
This amazing power adapter comes with an input voltage of 110 to 240V ACIt arrives with several unique plug kind (US, EU, UK, AU,KR etc) therefore it is ideal for traveling.

Production Flow



Hot Selling Adapters





Why Choose Us
The Interchangleable plug adapter Features: Efficiency level VI, Overload protection, Overvoltage protection, Constantly short circuit resistant.
Wall-mounted Style Interchangeable/Exchangeable Plug Power Adapter.

Interchangeable power adapter range from 5W to 36W,
The best and trustworthy efficiency.
All ac adapter units can be provided as standard or customized models to suit your needs or special demands.
The items are maked UL, CUL, FCC, CE, CB, SAA, C-Tick safety Lable.
Interchangeable AC plug power adapter,exchangeable plug ac adapter,multiple plug ac dc power adapter,interchangeable plug power supply.
Contact Us



Can you let us know the details for recommending you the perfect ac dc power adapter?

One) What is the input of adaptor? for example:100-240VAC, 50/60Hz
Two)What is the output of adaptor? for example:12VDC 0.5A,12VAC1A
Three)What is the adaptor combined with? for example:CCTV, LED lights, toys,motor,rounter?

Four)Your special requirements etc...



The Interchangeable plug ac dc power adapters that actually work in 150 nations, which includes the majority of Europe (US, UK, EU & AU plugs)

You can claim our interchangeable plug power adapter for free 1-3 samples, or pay for more than 3 pieces of the interchangeable adapter samples.
